Volkswagen Caddy racking - sizes & the kit that fits

Load length, offside and nearside fit, and roof height for the Volkswagen Caddy, with the StowPro kit built for each body. Both the 2005-2020 Caddy and Caddy Maxi and the 2020-on Caddy Cargo are covered.

Volkswagen Caddy load dimensions & the kit that fits

Body Also searched as Load length Load height Offside run Nearside run
SWB2005-2020 Caddy Van 1,779 mm 1,244 mm 1,250 mm 780 mm
SWB2020 on Cargo 1,797 mm 1,272 mm 1,250 mm 780 mm
Maxi2005-2020 Caddy Maxi 2,249 mm 1,259 mm 1,650 mm 1,000 mm
Maxi2020 on Cargo Maxi 2,150 mm 1,272 mm 1,500 mm 1,000 mm

2005-2020: load width 1,556 mm · between wheel arches 1,170 mm · load height 1,244 mm (Maxi 1,259 mm) · side door aperture 703 mm (Maxi 846 mm). 2020 on (Caddy Cargo): load width 1,613 mm · between wheel arches 1,230 mm · load height 1,272 mm · side door aperture 701 mm (Maxi 846 mm). Sliding door nearside on both.

Shop Volkswagen Caddy racking →

Offside or nearside?

Bird's-eye view of a right-hand-drive panel van: the offside (driver's side) takes one clear racking run from bulkhead to rear doors; the nearside (passenger side) racking is split by the sliding door.
Offside — one clear run Nearside — split by the sliding door

Bird's-eye view of a typical UK right-hand-drive van, with the standard single nearside sliding door.

Offside · driver's side

The longer run

The offside normally has no door breaking it up, so it takes the longest continuous racking run — the best wall for long items and full-height units.

Choose: Offside Only

Nearside · passenger side

Around the side door

The sliding load door splits this wall, so the nearside kit is modular fore and aft of the aperture, keeping loading access clear.

Choose: Nearside Only

Racking both walls? The Full Kit covers offside and nearside together.

Volkswagen Caddy floor dimensions from manufacturer/reference data; offside and nearside run widths from StowPro kit specifications. The 2005-2020 rows are the previous Caddy and Caddy Maxi. The 2020-on rows are the Caddy Cargo, a new van on a different platform (the 2024-on Ford Transit Connect shares it). The two generations take different kits, so check the shape rather than the year if your van is from around the changeover.

Volkswagen Caddy racking - common questions

What length racking fits in a Volkswagen Caddy SWB on the offside?

On a 2020-on Caddy Cargo the StowPro Offside kit runs 1,250 mm of shelving along a 1,797 mm load floor; on the 2005-2020 Caddy a different kit runs the same 1,250 mm along a 1,779 mm floor.

The offside (driver's side) has no sliding door breaking it up, so it takes your longest run before the rear doors. For this side only choose the Offside Only kit; for both walls choose the Full Kit.

How long is the load area in a Volkswagen Caddy?

The 2020-on Caddy Cargo load length is 1,797 mm on the SWB and 2,150 mm on the Maxi; the 2005-2020 Caddy is 1,779 mm on the SWB and 2,249 mm on the Maxi, measured along the floor.

Load width is 1,613 mm on the Caddy Cargo, narrowing to 1,230 mm between the wheel arches; the 2005-2020 van is 1,556 mm wide and 1,170 mm between the arches. StowPro build a kit for each of these bodies, so you match the rack to your exact van.

Do the 2005-2020 Caddy and the 2020-on Caddy Cargo take the same racking?

No. The Caddy Cargo is a new van on a different platform, and it takes different StowPro kits from the 2005-2020 Caddy and Caddy Maxi.

The old Maxi is actually the longer of the two inside, 2,249 mm against 2,150 mm, and takes a longer offside run: 1,650 mm against 1,500 mm on the Cargo Maxi. Pick your generation in the van search or read the table above, and if your van is from around 2020 check the shape rather than the year.

Do I need the nearside or offside racking kit for my Volkswagen Caddy?

Choose the Offside (driver's side) kit for the longest uninterrupted run, the Nearside (passenger side) kit to rack around the sliding door, or the Full Kit to fit out both walls.

On both generations of the Caddy the standard sliding load door is on the nearside, so that side is split into shorter modules while the offside takes the longer run. Most trades kitting out a whole van take the Full Kit.

Will racking fit between the wheel arches in a Volkswagen Caddy?

Yes. There is 1,230 mm between the wheel arches on the 2020-on Caddy Cargo and 1,170 mm on the 2005-2020 Caddy, and StowPro units are sized to sit within that width.

Above the arches the load area opens out to 1,613 mm on the Cargo and 1,556 mm on the older van, so upper shelves can be wider than the floor-level base.

Will fitting racking reduce my Volkswagen Caddy payload?

Racking uses some of the Volkswagen Caddy's payload, but StowPro units are built from lightweight load-rated steel to keep that to a minimum.

Fit only the side or sides you need (Offside, Nearside or Full Kit) and keep heavy stock low and central to protect your remaining payload and handling.

What's the longest item I can carry down the side of a Volkswagen Caddy?

Long items travel at floor level: the load length, 2,150 mm on a Caddy Cargo Maxi or 2,249 mm on a 2005-2020 Caddy Maxi, is measured along the floor, and StowPro racking sits against the wall so the load floor in front of it stays clear.

Don't plan on carrying a full-length item on top of the racking. Higher up, the bulkhead and cab seats intrude, so the usable length above the floor is shorter than the floor figure. The offside kit itself runs 1,500 mm along the wall on the Cargo Maxi and 1,650 mm on the 2005-2020 Maxi; tell us your body and year and we'll confirm what fits.

Van Racking for the Volkswagen Caddy

A smaller van has no room for wasted space, which is exactly why the Caddy suits proper racking. We cover the Caddy and Caddy Maxi, including the 2020 onward Caddy Cargo, with kits sized to make every inch of the load area earn its keep.

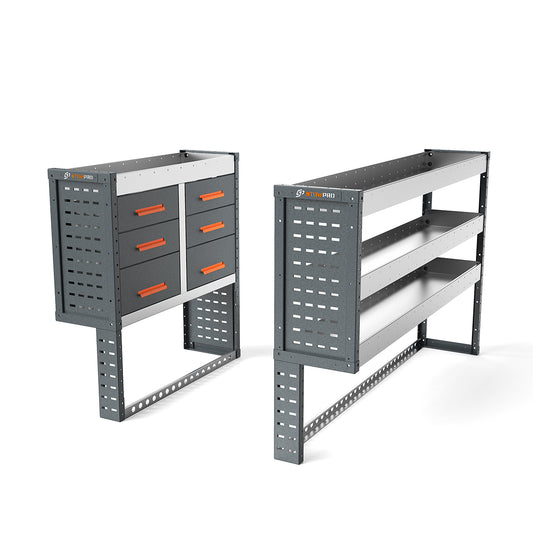

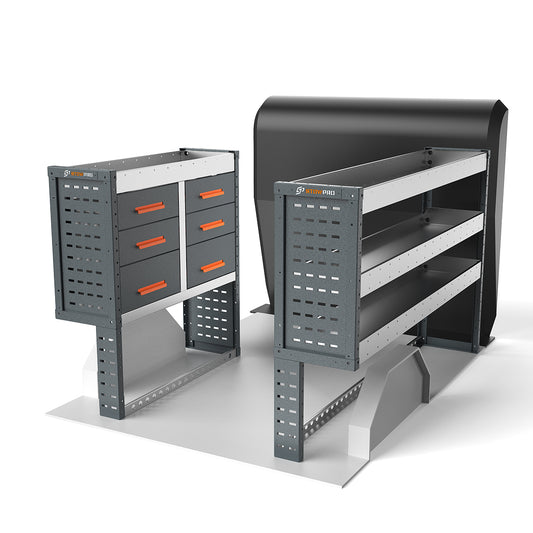

Shelving kits put open steel shelves down the side, each rated to 40kg, with top trays for the long stuff. Workshop kits add drawers, so the small parts stay sorted and you stop losing minutes hunting for tools between jobs. Over a working week that time adds up, and it's the reason racking is worth the money on a small van just as much as a big one.

Like everything we make, it's heavy duty, hard-wearing steel, manufactured and assembled at our workshop in Devon, with sturdy fabricated end frames and a 3 year guarantee.

The kit lands on a pallet already built. Sit the units in the van, fix them to the floor and sides using the brackets and fixings in the box, and the installation guide covers the rest. Stuck on anything, phone us and we'll walk you through it.

Several of these kits also fit the Mercedes Citan and Renault Kangoo Maxi, so check the fitment list for your exact van and year. Add ribbed anti slip mats and bins to finish the job, or use build your own to put together a layout of your choosing.
