Fiat Doblo Van Racking Kits

Filter by Van Model (Year) and Van Size to find kit options to suit your specific van.

Which van have you got?

Pick your size to see only the kits that fit it.

Make
Generation
Van Size

Can't see your van?

Fiat Doblo racking - sizes & the kit that fits

Load length, offside and nearside fit, and roof height for the Fiat Doblo, with the StowPro kit built for each body. Both the 2010-2022 Doblo Cargo and the 2022-on van are covered.

Fiat Doblo load dimensions & the kit that fits

Body Also searched as Load length Load height Offside run Nearside run
L12010-2022 SWB 1,820 mm 1,305 mm 1,250 mm 780 mm
L12022 on M / Standard 1,817 mm ~1,200 mm 1,250 mm 780 mm
L22010-2022 Maxi / LWB 2,170 mm 1,305 mm 1,500 mm 780 mm
L22022 on XL / Long 2,167 mm ~1,200 mm 1,650 mm 1,000 mm

2010-2022: load width 1,714 mm · between wheel arches 1,230 mm · load height 1,305 mm (standard roof; high roof 1,550 mm). 2022 on: load width ~1,550 mm · between wheel arches 1,229 mm · load height ~1,200 mm · side door aperture ~640 mm. Sliding door nearside on both.

Shop Fiat Doblo racking →

Offside or nearside?

Bird's-eye view of a right-hand-drive panel van: the offside (driver's side) takes one clear racking run from bulkhead to rear doors; the nearside (passenger side) racking is split by the sliding door.
Offside — one clear run Nearside — split by the sliding door

Bird's-eye view of a typical UK right-hand-drive van, with the standard single nearside sliding door.

Offside · driver's side

The longer run

The offside normally has no door breaking it up, so it takes the longest continuous racking run — the best wall for long items and full-height units.

Choose: Offside Only

Nearside · passenger side

Around the side door

The sliding load door splits this wall, so the nearside kit is modular fore and aft of the aperture, keeping loading access clear.

Choose: Nearside Only

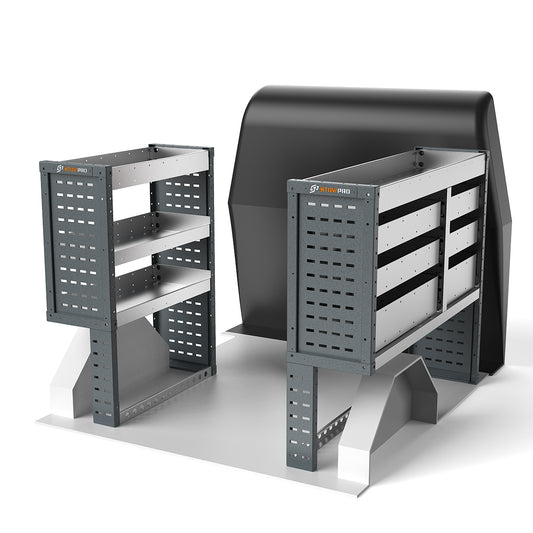

Racking both walls? The Full Kit covers offside and nearside together.

Fiat Doblo floor dimensions from manufacturer/reference data; offside and nearside run widths from StowPro kit specifications. The 2010-2022 rows are the previous Doblo Cargo, the same van as the 2012-2018 Vauxhall Combo, standard roof. The 2022-on rows are the current Stellantis small van, shared with the Citroën Berlingo, Peugeot Partner, Vauxhall Combo and Toyota Proace City. The two generations take different kits, so check the shape rather than the year if your van is from around the changeover.

Fiat Doblo racking - common questions

What length racking fits in a Fiat Doblo L1 on the offside?

On a 2022-on Fiat Doblo L1 the StowPro Offside kit runs 1,250 mm of shelving along a 1,817 mm load floor; on the 2010-2022 Doblo Cargo L1 a different kit runs the same 1,250 mm along a 1,820 mm floor.

The offside (driver's side) has no sliding door breaking it up, so it takes your longest run before the rear doors. For this side only choose the Offside Only kit; for both walls choose the Full Kit.

How long is the load area in a Fiat Doblo?

The 2022-on Fiat Doblo load length is 1,817 mm on the L1 and 2,167 mm on the L2; the 2010-2022 Doblo Cargo is 1,820 mm on the L1 and 2,170 mm on the L2 (Maxi), measured along the floor.

Load width is about 1,550 mm on the 2022-on van and 1,714 mm on the 2010-2022 van, narrowing to about 1,230 mm between the wheel arches on both. StowPro build a kit for each of these bodies, so you match the rack to your exact van.

Do the 2010-2022 and the 2022-on Doblo take the same racking?

No. The 2022-on Doblo is the Stellantis small van shared with the Berlingo, Partner and Combo, and the 2010-2022 Doblo Cargo is Fiat's own previous body; they take different StowPro kits even though the floors are almost the same length.

Pick your generation in the van search or read the table above, and if your van is from around 2022 check the shape rather than the year. On the L2 the difference shows in the runs: 1,650 mm offside and 1,000 mm nearside on the 2022-on van, 1,500 mm offside and 780 mm nearside on the 2010-2022 Maxi.

Do I need the nearside or offside racking kit for my Fiat Doblo?

Choose the Offside (driver's side) kit for the longest uninterrupted run, the Nearside (passenger side) kit to rack around the sliding door, or the Full Kit to fit out both walls.

On both generations of the Doblo the standard sliding load door is on the nearside, so that side is split into shorter modules while the offside takes the longer run. Most trades kitting out a whole van take the Full Kit.

Is Fiat Doblo racking the same as Vauxhall Combo racking?

For the 2022-on Doblo, yes: it is the same van as the 2018-on Vauxhall Combo, Citroën Berlingo, Peugeot Partner and Toyota Proace City, with identical load dimensions, so StowPro racking built for one fits the others.

The 2010-2022 Doblo Cargo is the same van as the 2012-2018 Vauxhall Combo instead. Match the generation and the body length and the kit is interchangeable across the badge-engineered twins.

Can I still carry long items past the racking in a Fiat Doblo?

Yes, at floor level. StowPro racking sits against the wall and leaves the load floor clear, and if your Fiat Doblo has a load-through hatch, long items can pass through the bulkhead at floor level.

The load-through length quoted by the manufacturer only applies at the floor with the hatch open; higher up the bulkhead intrudes, so plan around the floor length and don't count on resting long items on top of the racking.

Will fitting racking reduce my Fiat Doblo payload?

Racking uses some of the Fiat Doblo's payload, but StowPro units are built from lightweight load-rated steel to keep that to a minimum.

Fit only the side or sides you need (Offside, Nearside or Full Kit) and keep heavy stock low and central to protect your remaining payload and handling.

What's the longest item I can carry down the side of a Fiat Doblo?

Long items travel at floor level: the load length, 2,167 mm on a 2022-on L2 or 2,170 mm on a 2010-2022 Maxi, is measured along the floor, and StowPro racking sits against the wall so the load floor in front of it stays clear.

Don't plan on carrying a full-length item on top of the racking. Higher up, the bulkhead and cab seats intrude, so the usable length above the floor is shorter than the floor figure. The offside kit itself runs 1,650 mm along the wall on the 2022-on L2 and 1,500 mm on the 2010-2022 Maxi; tell us your body and year and we'll confirm what fits.

Van Racking for the Fiat Doblo

The Doblo and the Vauxhall Combo are the same van under the badge, and our racking fits both: L1 and L2, shelving or workshop, with the exact years and sizes on each kit's fitment list.

Everything we build is heavy duty, hard-wearing steel, made for the toughest demands and designed to take a beating. Kits are manufactured and assembled at our workshop in Devon, with sturdy fabricated end frames, and covered by a 3 year guarantee.

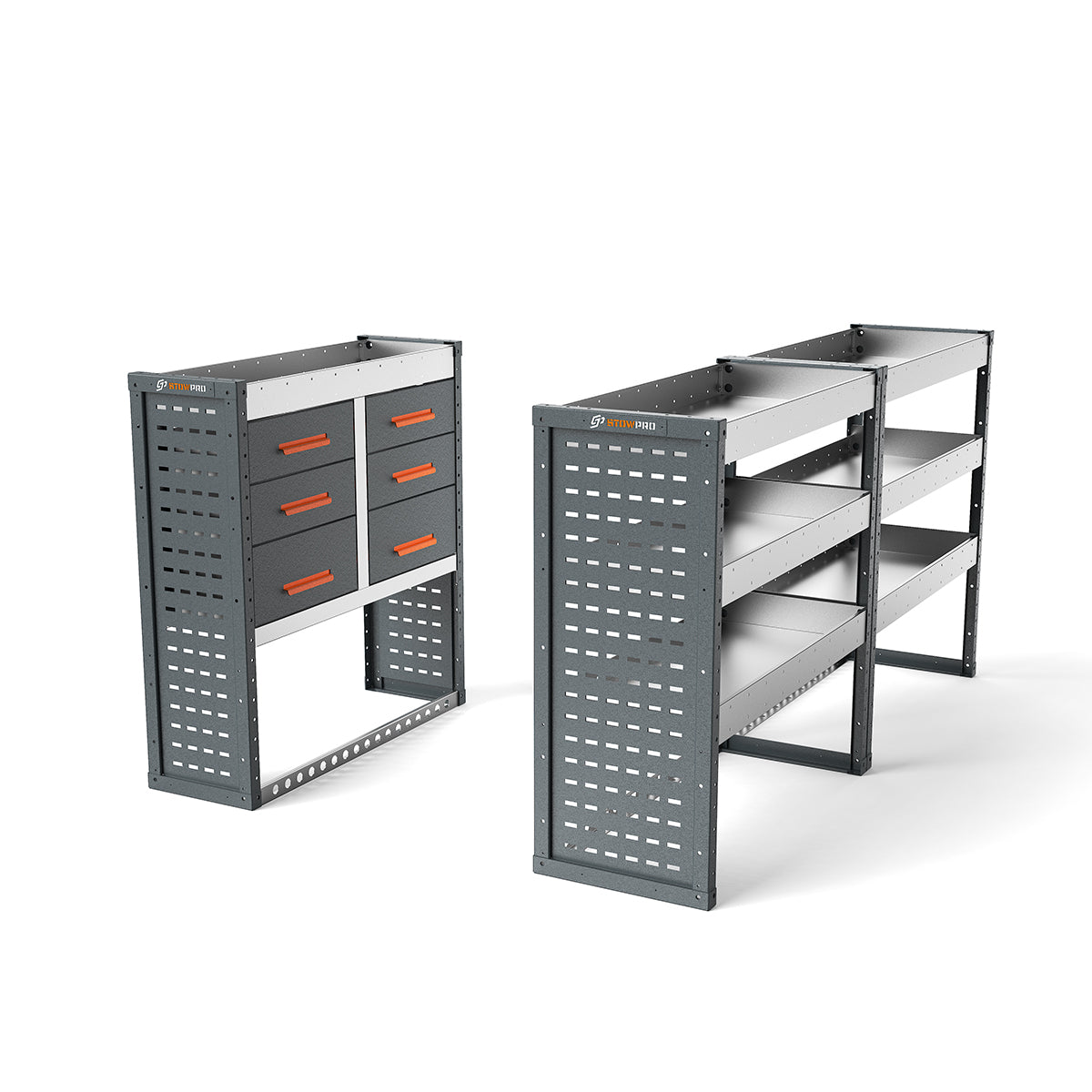

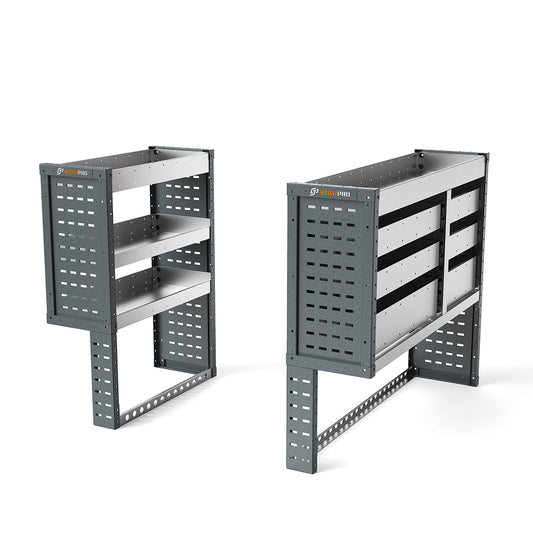

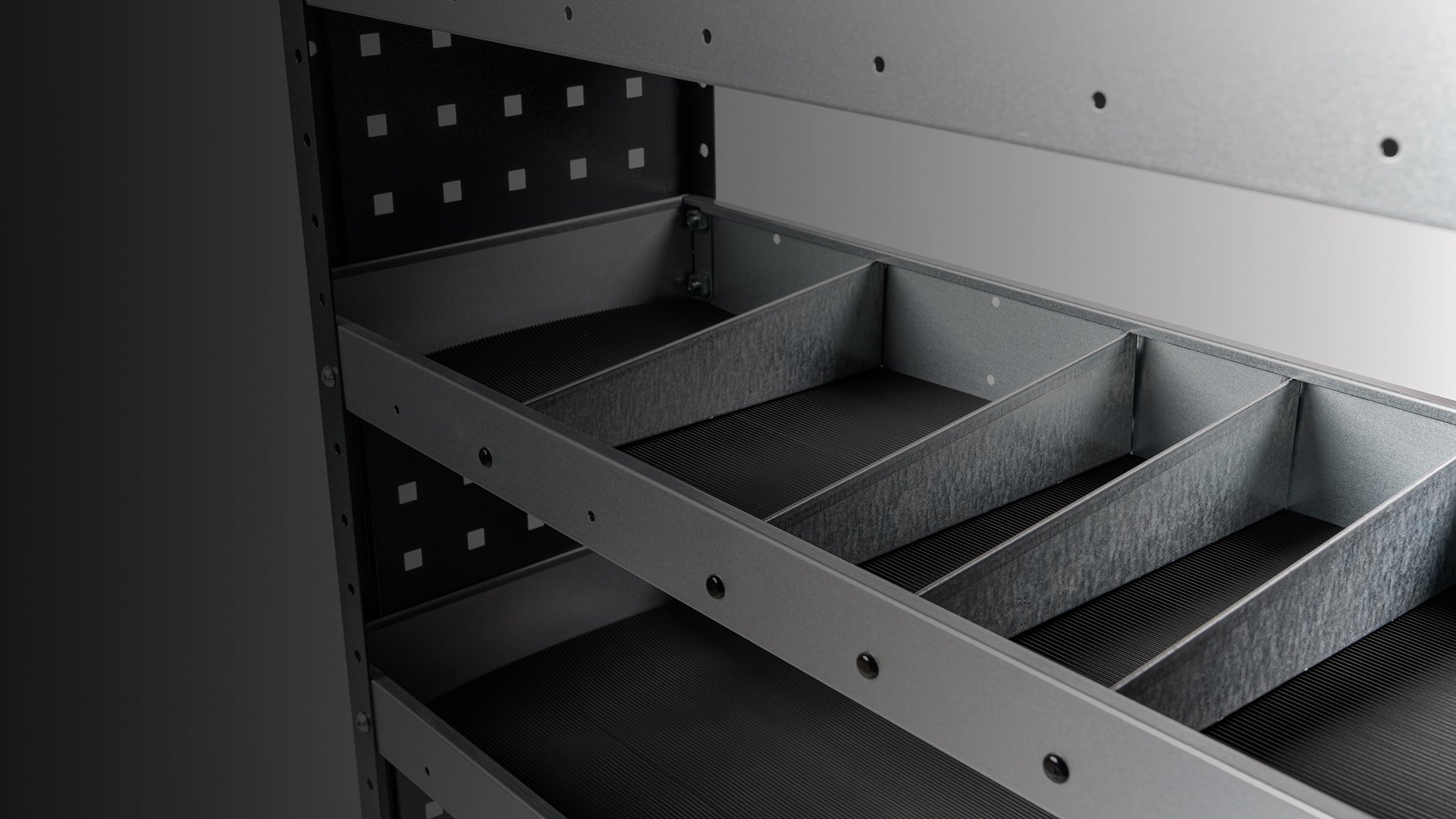

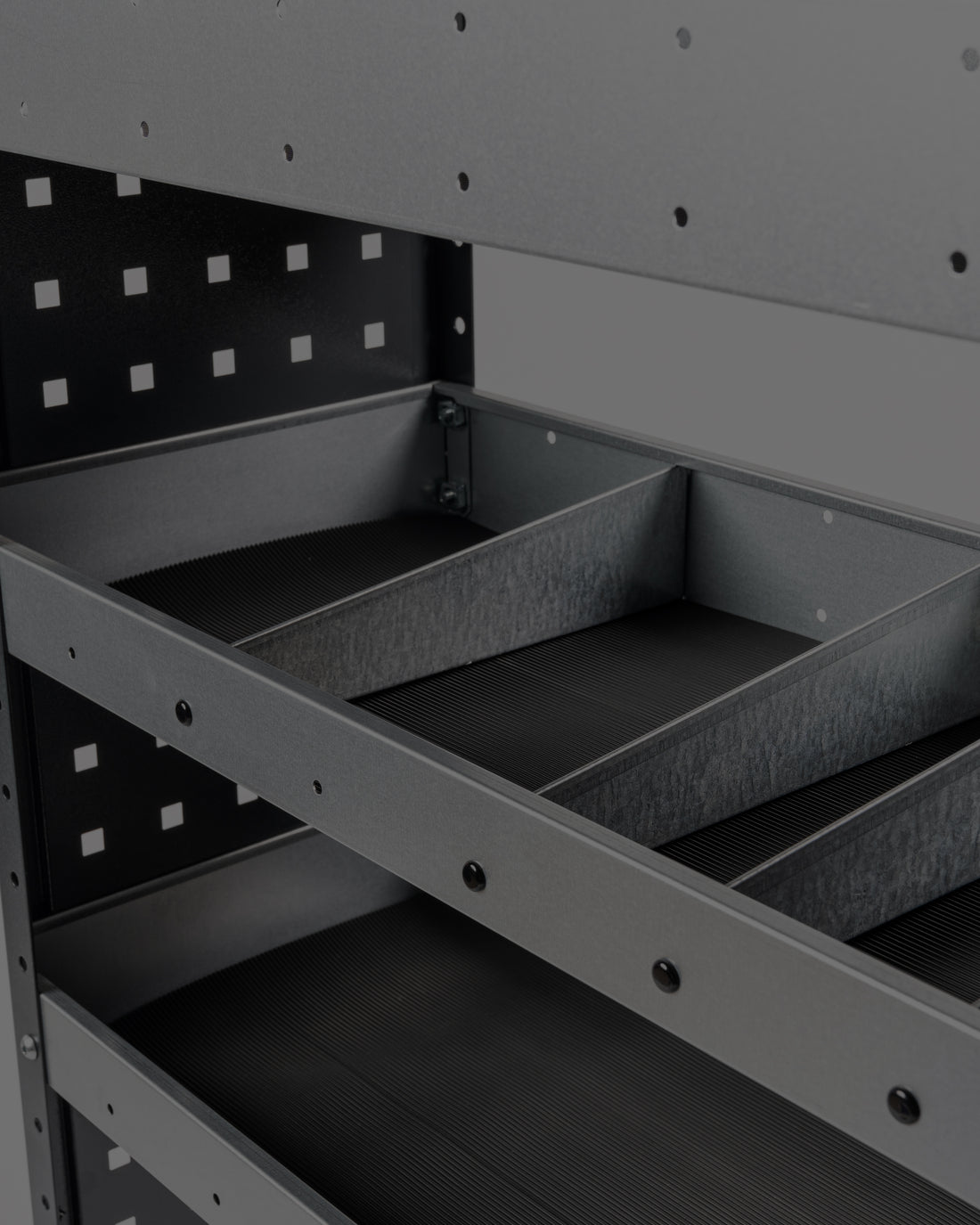

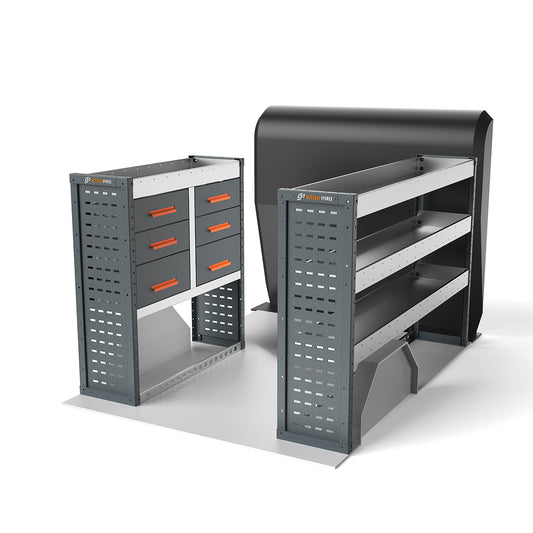

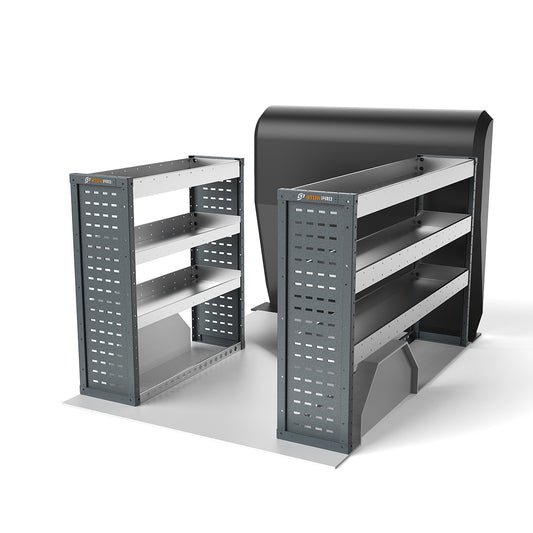

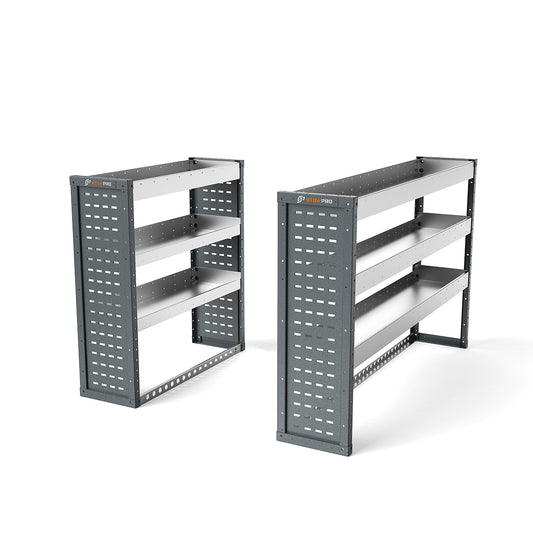

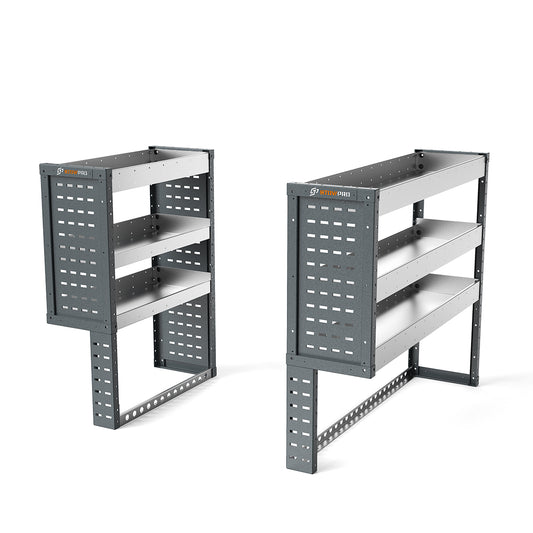

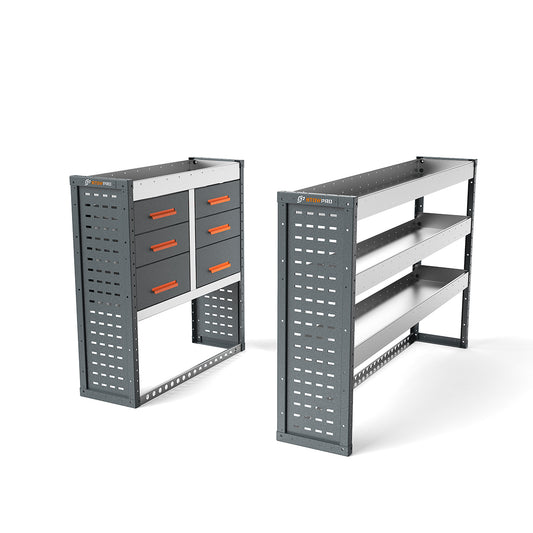

Shelving puts the boxes and tubs on open steel shelves, 40kg a shelf, with top trays keeping the long stuff tidy. The workshop kits add a bank of drawers so the small parts stay sorted. In a compact van that order matters double: you can see everything, reach everything, and stop wasting time on site looking for tools. That saved time is what makes the investment stack up.

Your kit is delivered on a pallet with the units already built. Position them in the van, fix them to the floor and sides using the brackets and fixings in the box, and follow the installation guide. If you want a hand at any stage, our team are on the phone.

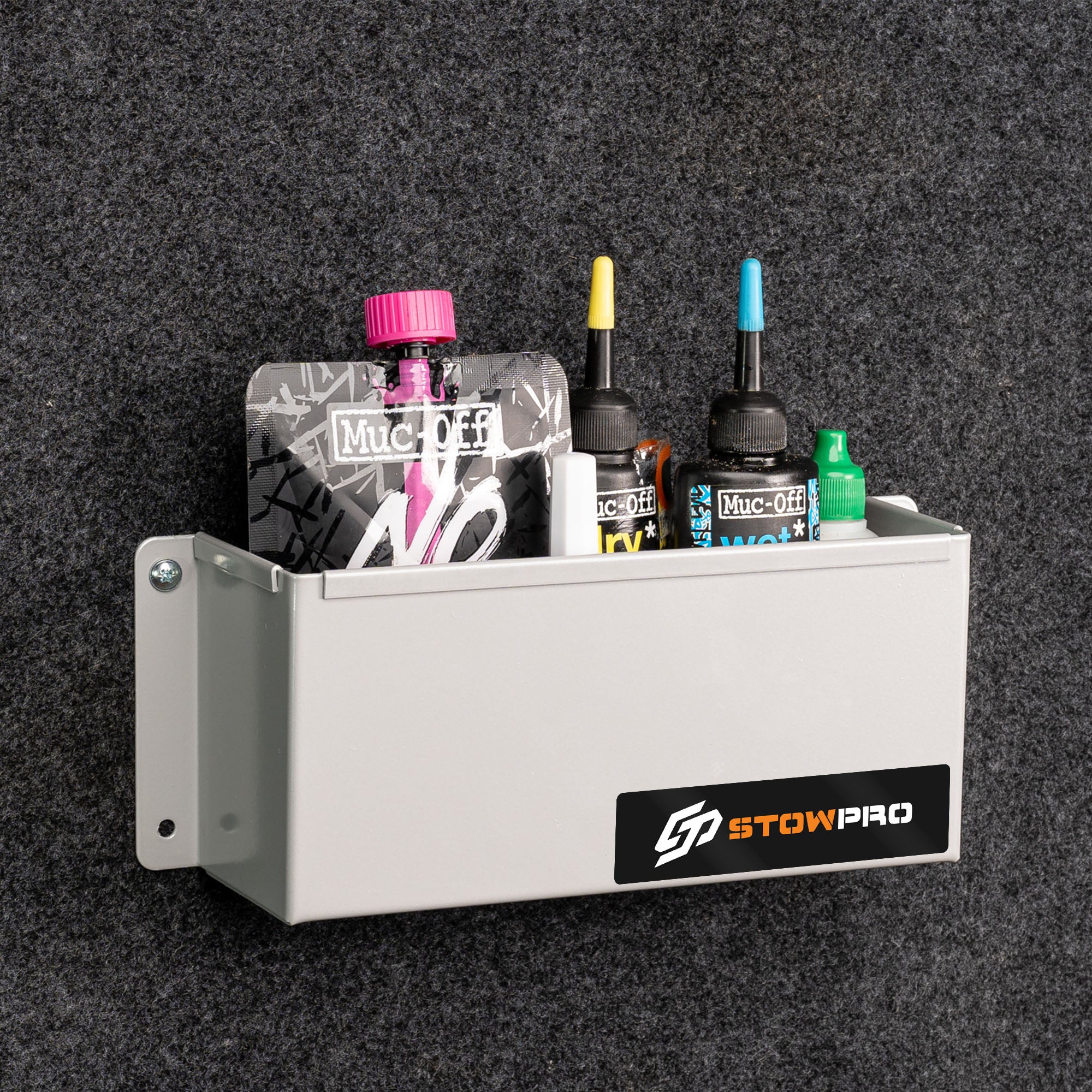

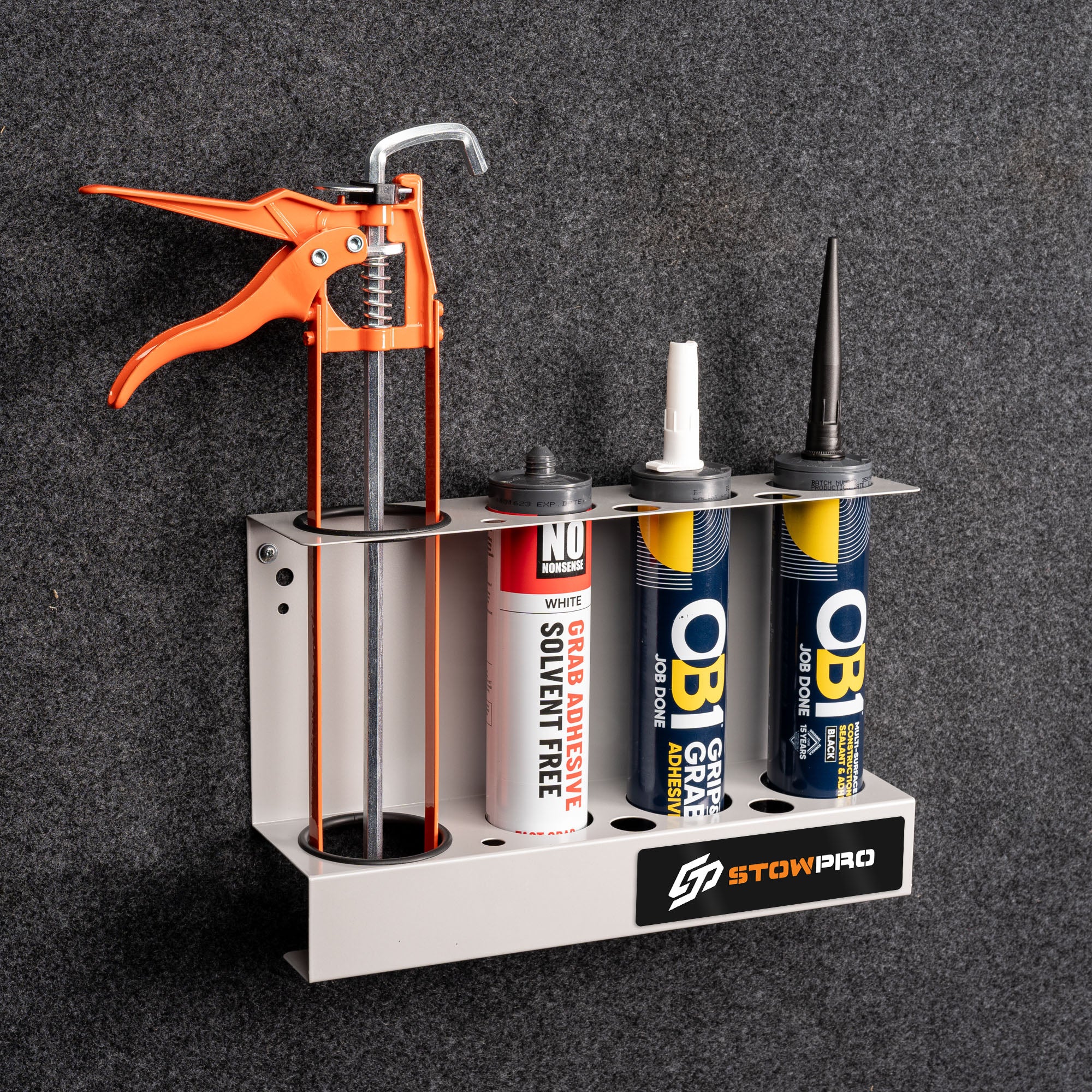

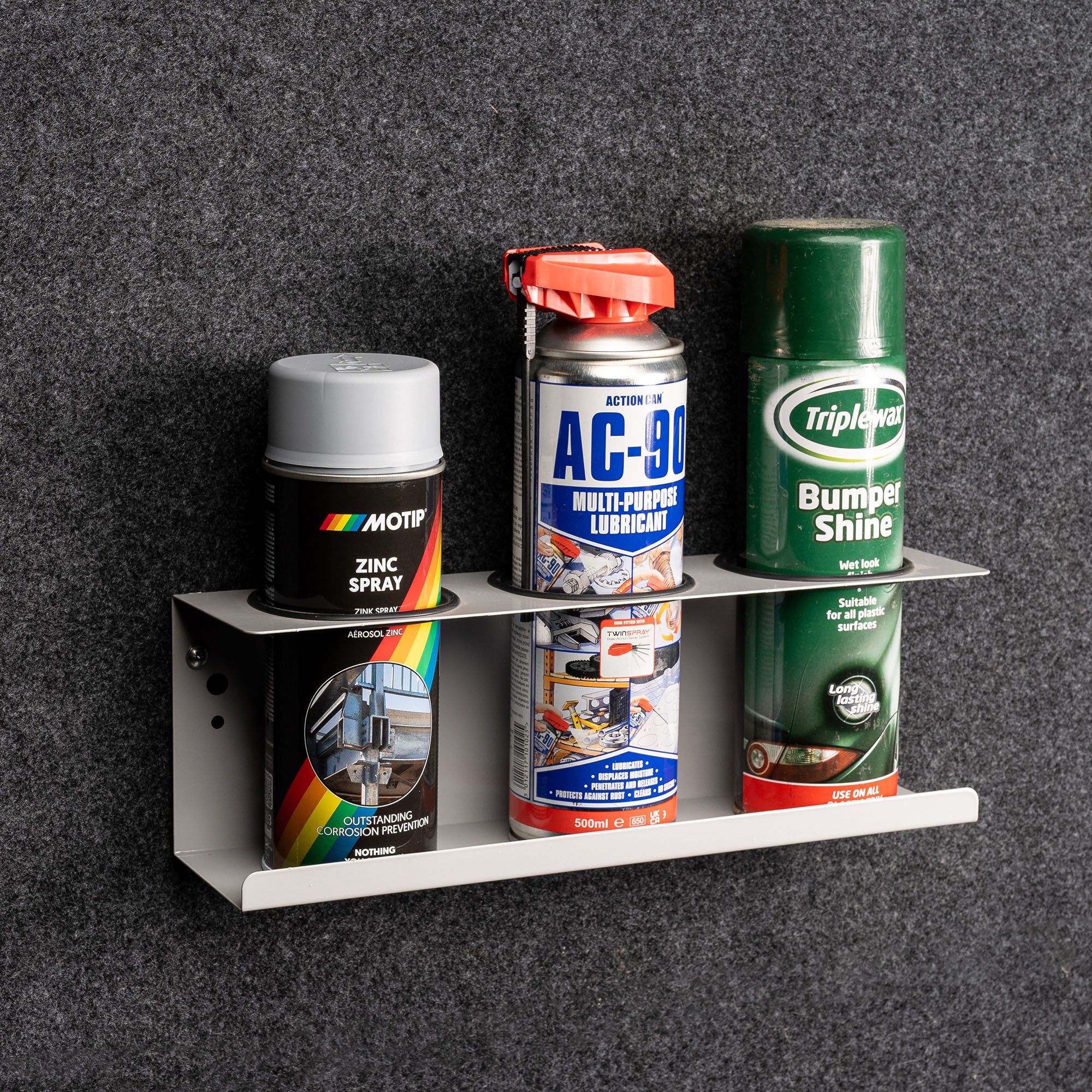

Bolts in, bolts out: change to another van of the same size and the racking moves with you. Finish it with ribbed anti slip mats, bins, and storage accessories for the end frames, or build a layout of your own with build your own.
