Service & Maintenance Van Racking System – Transit, Crafter, Sprinter & 3 more (L3H2/H3)

Service & Maintenance Van Racking System – Transit, Crafter, Sprinter & 3 more (L3H2/H3)

£2,440.20 ex. VAT
£2,928.24 inc. VAT
£2,440.20 ex. VAT £0.00
£2,928.24 inc. VAT
Sold out
Shipping calculated at checkout.

CK038_FK

In stock

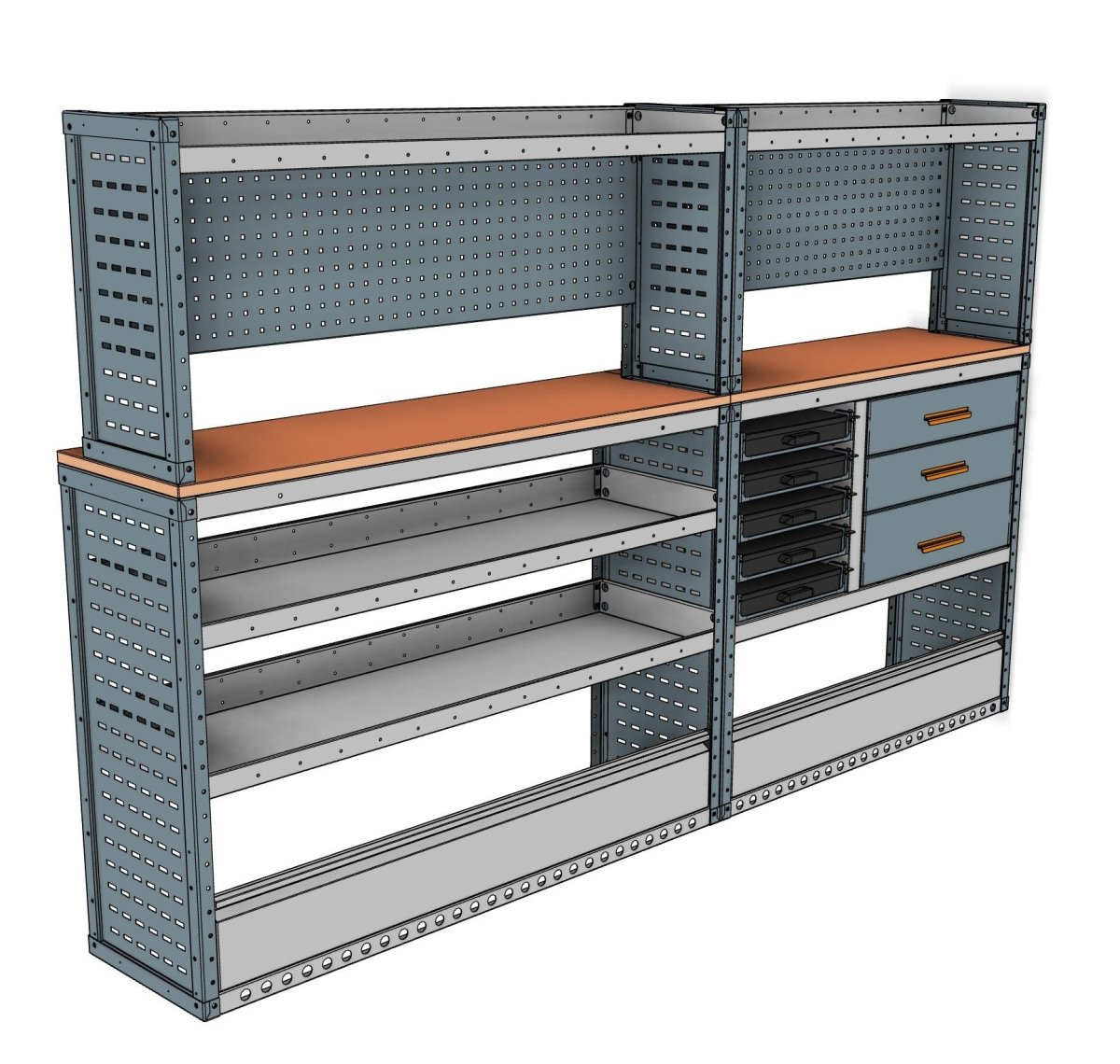

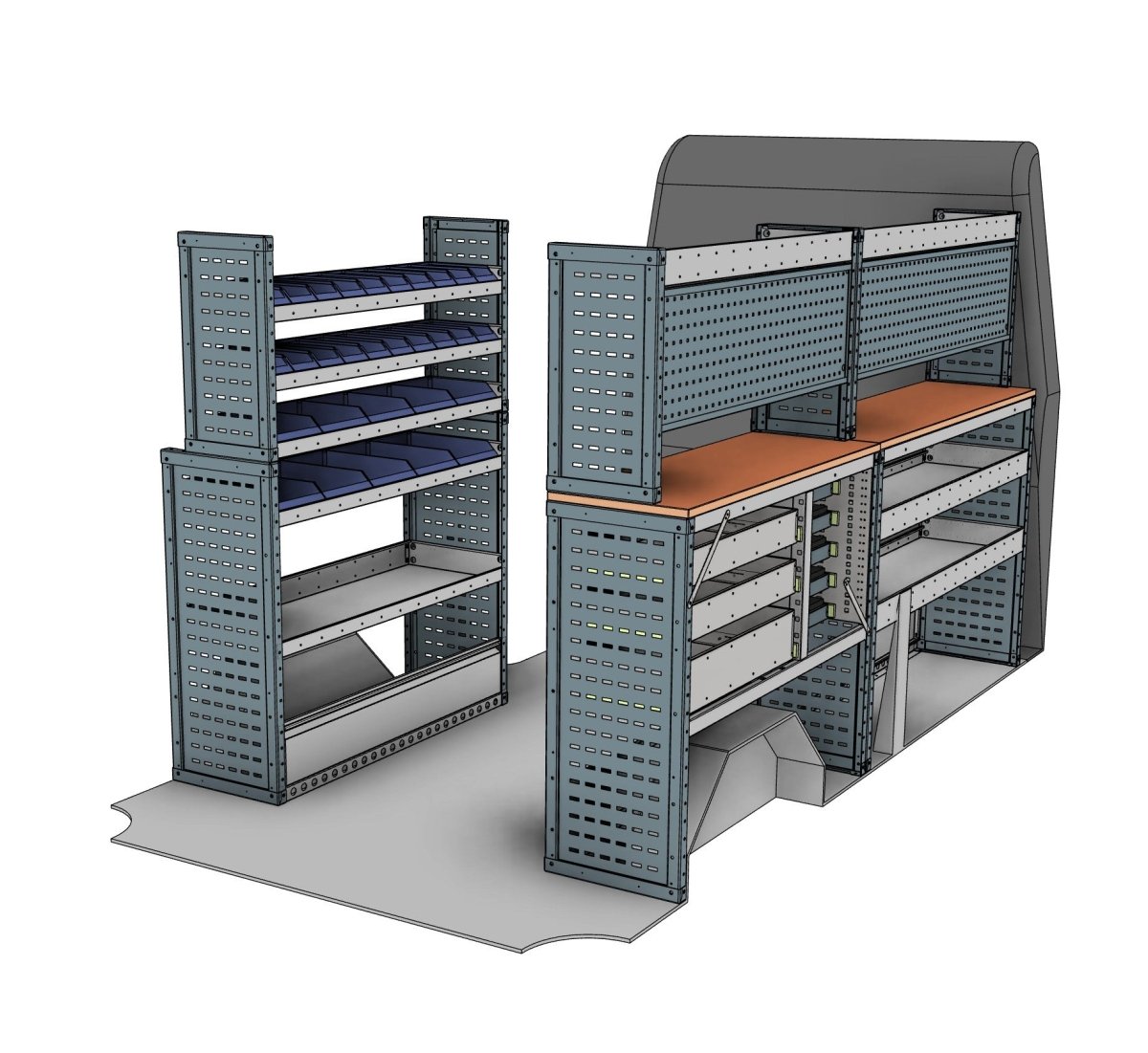

Set up for servicing and maintenance, where the van is workshop and parts store in one. The driver’s side is the business end: five sliding service cases, carry cases included, that pull out, head to the job and click back in, with three drawers below for the hand tools and a run of birch worktop sturdy enough to work on, plus perforated storage panels to hang the most-used tools in reach. Across the van, the passenger side is the parts wall: ten wide 400mm-deep Lin Bins and twenty narrow 300mm-deep Lin Bins for the fittings and consumables you pick every day, over five open shelves rated to 40kg each, with four more under the worktop for the boxed and the bulky. One system, six vans. It fits the Ford Transit, Volkswagen Crafter, Mercedes Sprinter, MAN TGE, Iveco Daily and Maxus Deliver 9, so check the fitment list on this page for your exact year and size. Passenger Side: 1712H x 1250W x 435/335D (5 Shelf)Drivers Side: 1737H x 2750W x 435/335D (3 Drawer, 4 Shelf) Drop-front kick plates keep the bottom row secure and hidden on the move, and drop down flat when you need to load. The perforated end panels pair with our panel accessories for even more hanging storage. Add divider kits, bin kits and anti-slip mats to keep your gear in place. Stay organised, save time, and get things done.

Read more
Choose Layout Option
  • Shipped in 7-10 Working Days
  • Made in Britain
  • Crash Tested to ECE Reg 17

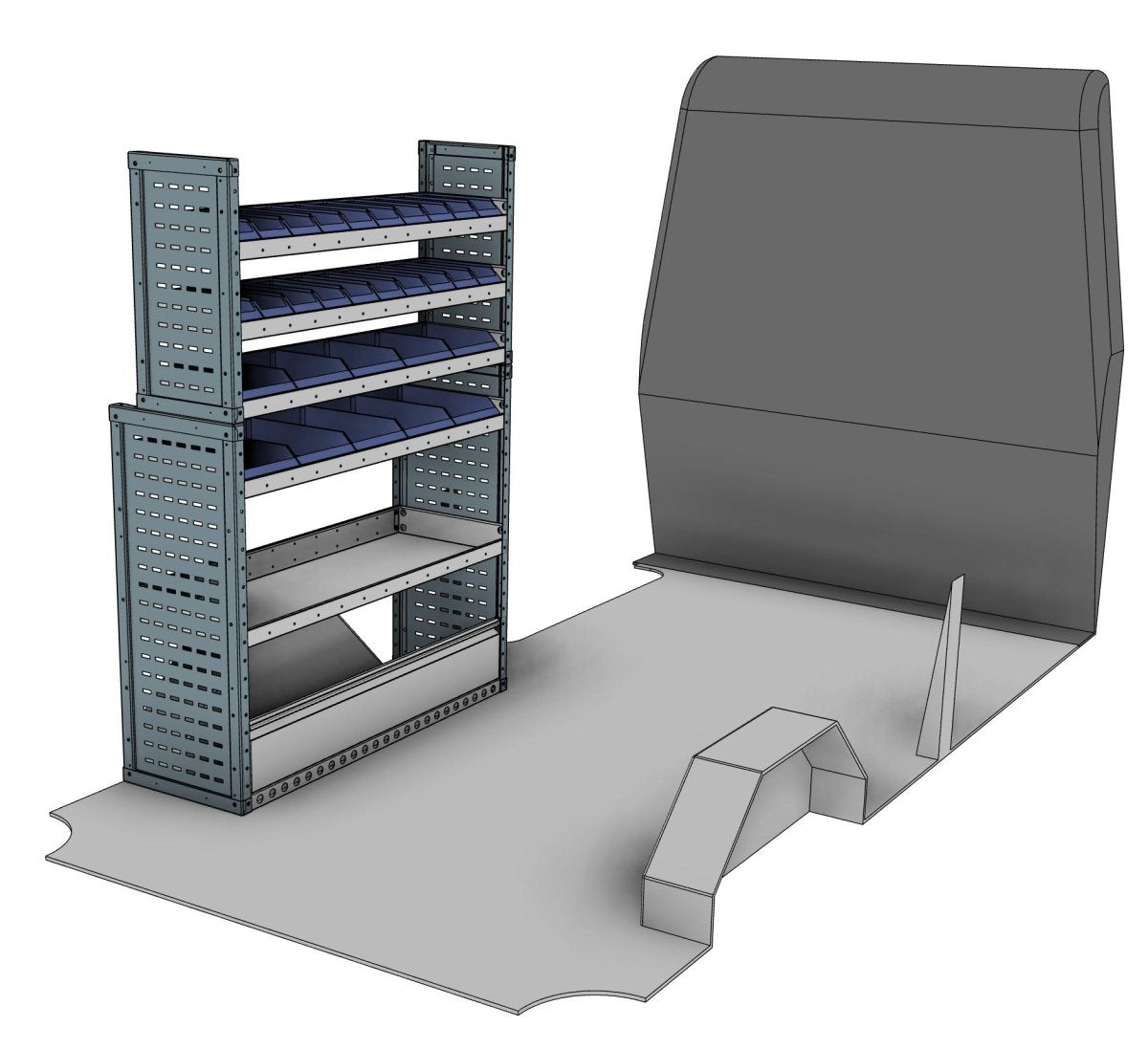

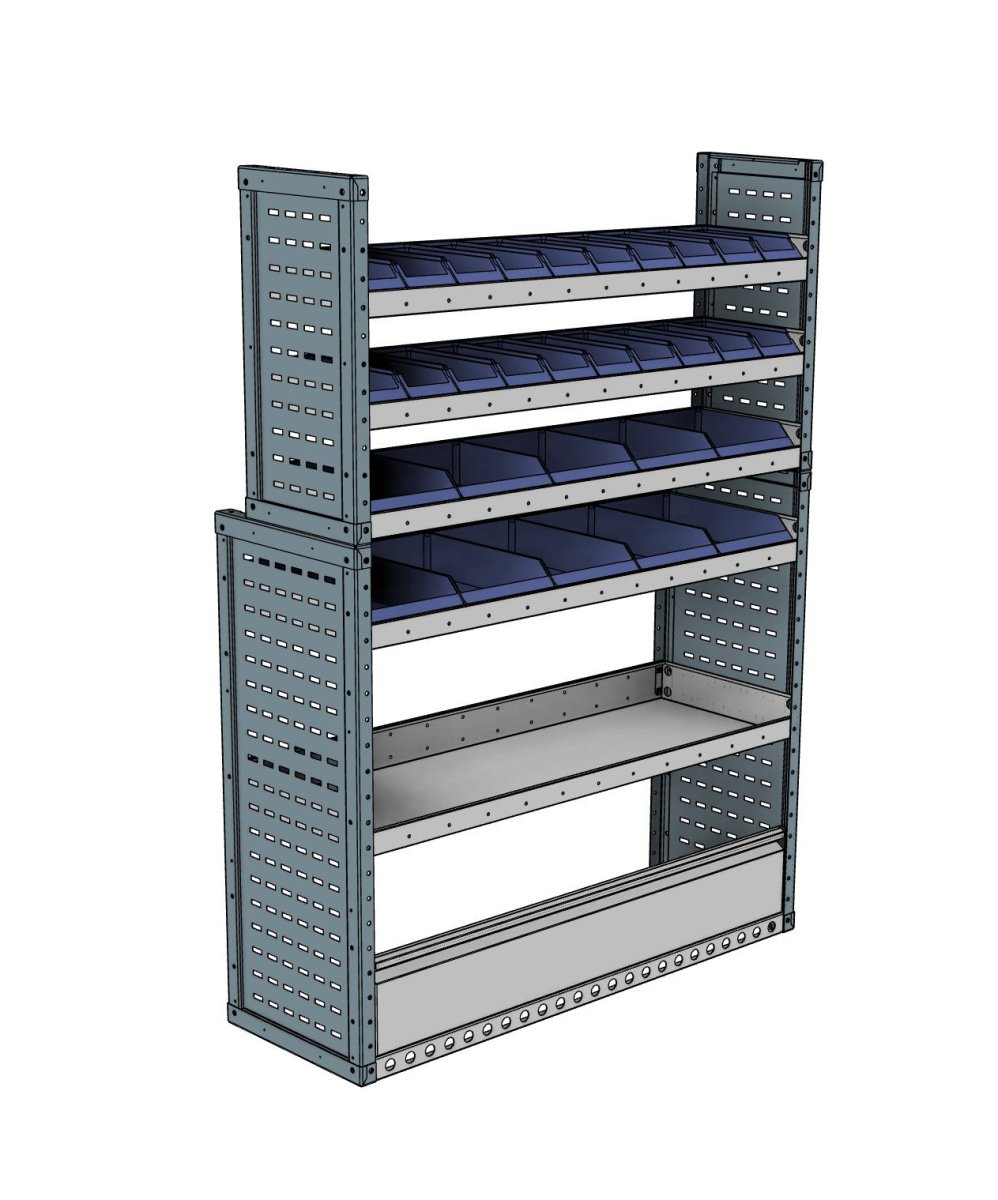

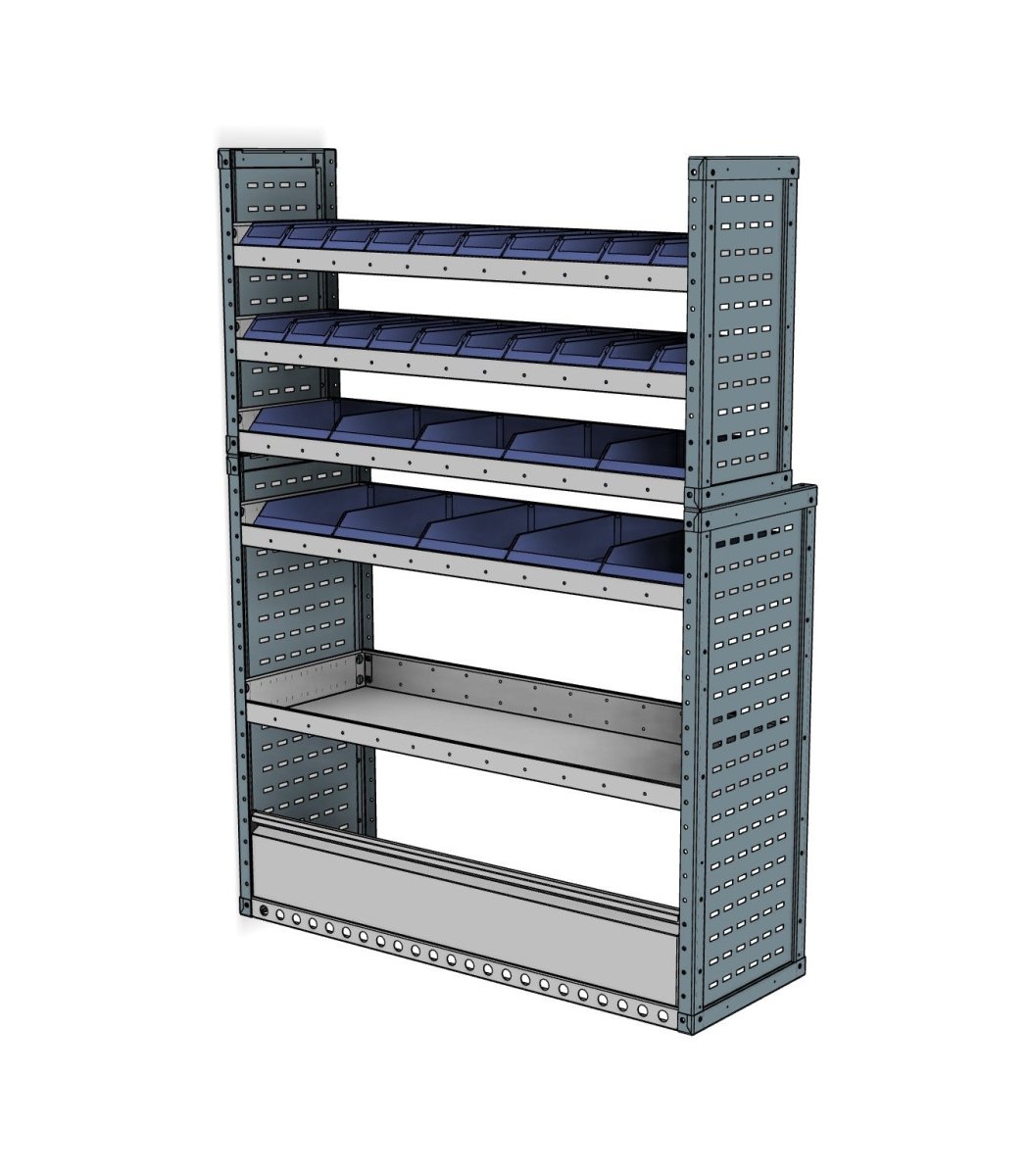

Nearside Unit Features

Dimensions

  • 1712H x 1250W x 435/335D mm

Weight: 64 kg

What's included

  • 5 x Low Front Shelf
  • 1 x Drop Front Kick Plate
  • 10 x Wide 400d Lin Bin
  • 20 x Narrow 300d Lin Bin
  • 2 x Perforated End Frame
  • 1 x Fixing Kit, Including Brackets
  • 1 x Step by Step Assembly Leaflet

Drawings

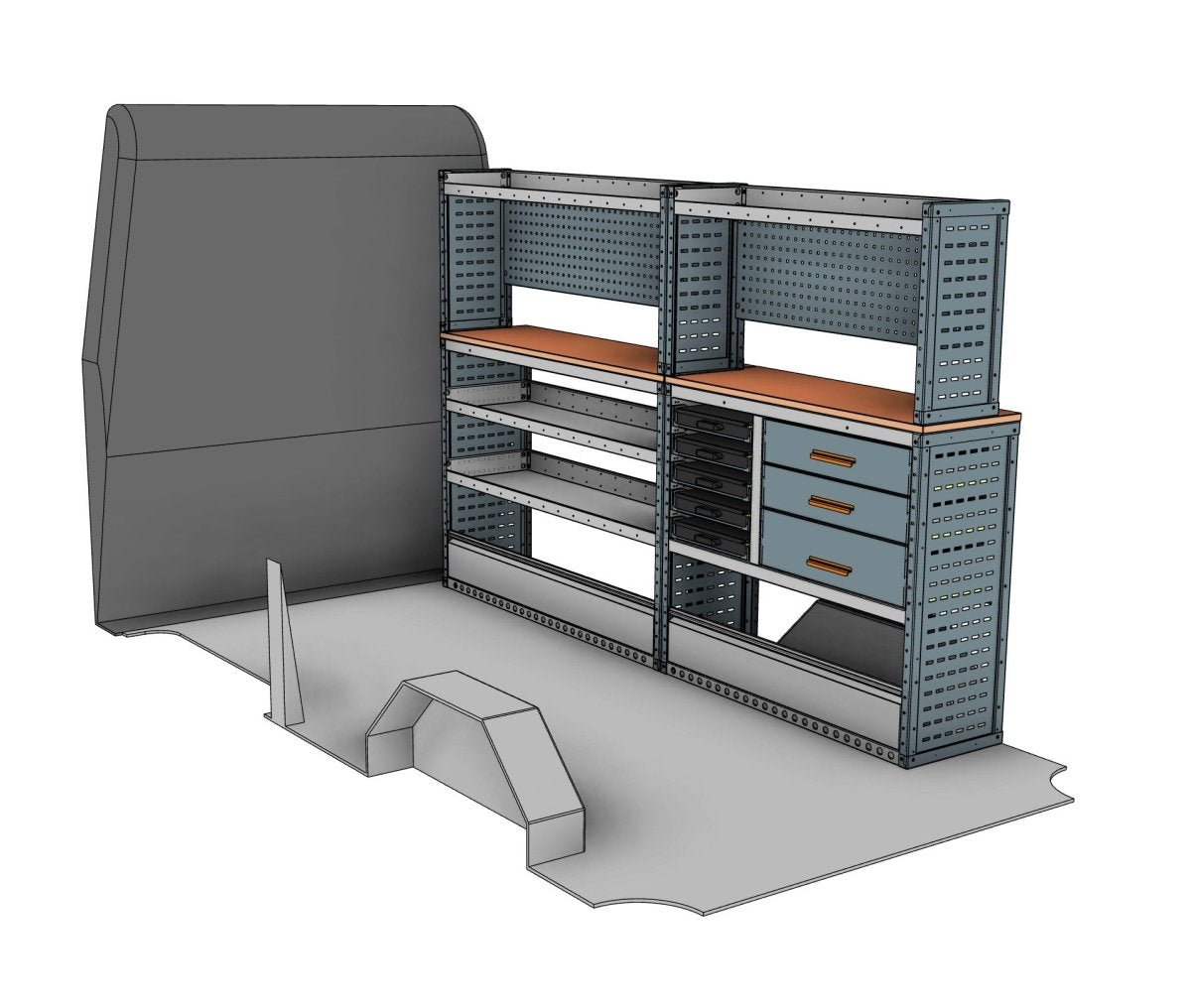

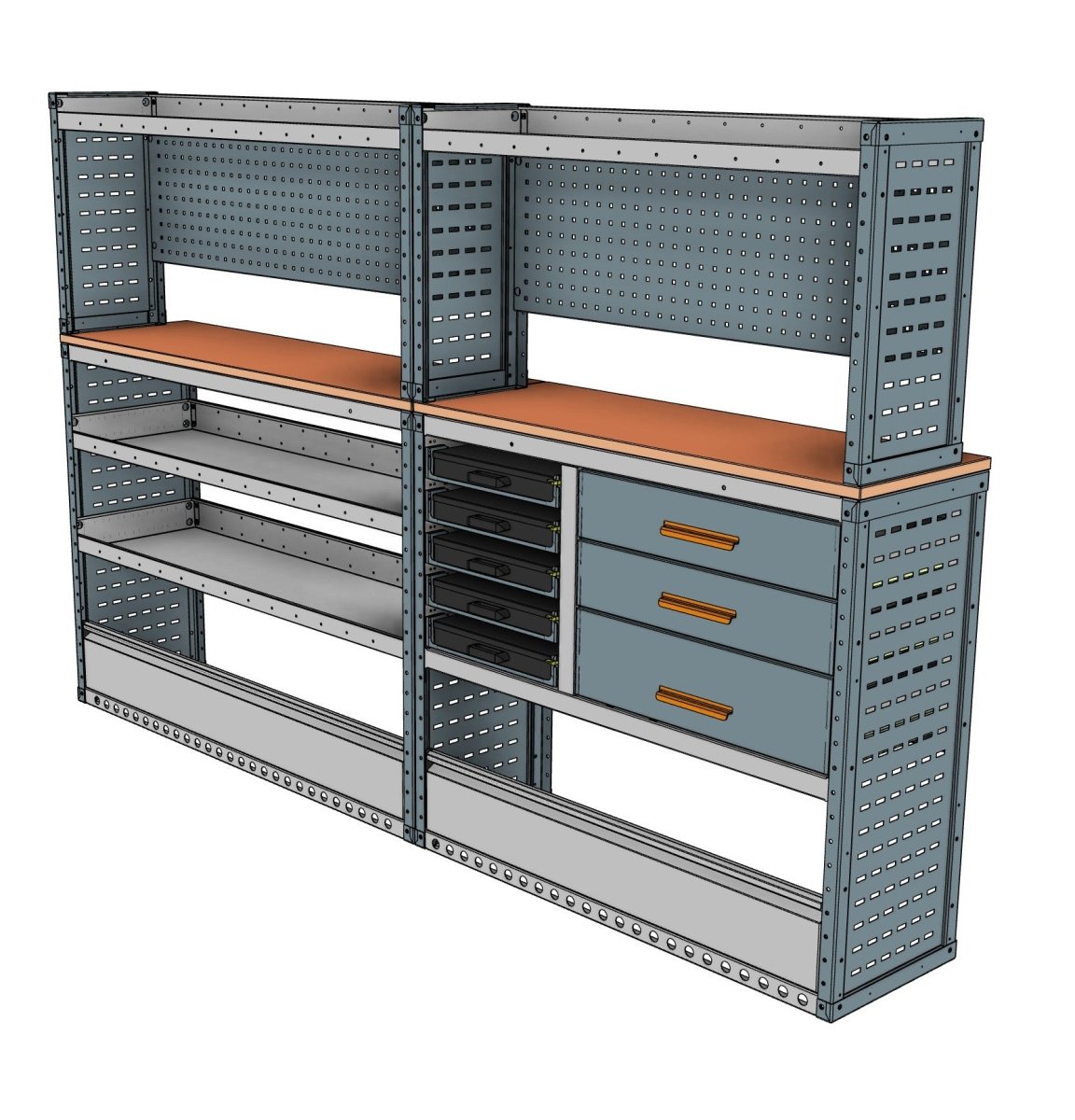

Offside Unit Features

Dimensions

  • 1737H x 2750W x 435/335D mm

Weight: 180 kg

What's included

  • 3 x Drawer
  • 5 x Sliding Service Case (Cases Included)
  • 4 x Low Front Shelf
  • 2 x Birch Worktop
  • 2 x Perforated Storage Panel
  • 2 x Drop Front Kick Plate
  • 2 x Perforated End Frame
  • 1 x Fixing Kit, Including Brackets
  • 1 x Step by Step Assembly Leaflet

Drawings

Fits these vans

  • Ford Transit (2014+)L3H2, L3H3
  • Iveco Daily (2014+)L3H2, L3H3
  • Mercedes Sprinter (2018+)L2H2
  • MAN TGE (2017+)L2H3
  • Maxus Deliver 9 (2020+)L3H2, L3H3
  • Volkswagen Crafter (2017+)L3H3

Not sure which you have? The size code is on your vehicle handbook or the door plate.

Shipping Info

Standard Delivery - £50 excl VAT

Estimated delivery 7-10 working days.

Racking kits are manufactured and assembled to order at our manufacturing partner. Where possible the units will be fully assembled and palletised. Where units do not fit on a standard pallet, we will send the components sub-assembled with clear instructions for build.

Installation Info

Kits arrive sub-assembled: built up as far as possible and palletised, so you're fitting ready-made modules rather than building from scratch. Comprehensive fitting instructions, fixings and brackets are all included, and most installs are done in half a day. Any questions along the way, our team is on hand to guide you through.

Also available for this van

Set up for servicing and maintenance, where the van is workshop and parts store in one. The driver’s side is the business end: five sliding service cases, carry cases included, that pull out, head to the job and click back in, with three drawers below for the hand tools and a run of birch worktop sturdy enough to work on, plus perforated storage panels to hang the most-used tools in reach.

Across the van, the passenger side is the parts wall: ten wide 400mm-deep Lin Bins and twenty narrow 300mm-deep Lin Bins for the fittings and consumables you pick every day, over five open shelves rated to 40kg each, with four more under the worktop for the boxed and the bulky.

One system, six vans. It fits the Ford Transit, Volkswagen Crafter, Mercedes Sprinter, MAN TGE, Iveco Daily and Maxus Deliver 9, so check the fitment list on this page for your exact year and size.

Passenger Side: 1712H x 1250W x 435/335D (5 Shelf)
Drivers Side: 1737H x 2750W x 435/335D (3 Drawer, 4 Shelf)

Drop-front kick plates keep the bottom row secure and hidden on the move, and drop down flat when you need to load. The perforated end panels pair with our panel accessories for even more hanging storage. Add divider kits, bin kits and anti-slip mats to keep your gear in place. Stay organised, save time, and get things done.
